Power Cable


PDMonitorC utilizes HFCT sensors to monitor the PD signals from power cables in real time. It consists of sensors, Monitoring Endpoint Units (MEU), and a Diagnostic Server Unit (DSU). It conducts real time monitoring for the PD signals from the power cables while online with Broadband Electromagnetic Coupling Technology. The PD Signals detected from the sensors are transmitted to the MEU for signal acquisition.
(View Catalogue)

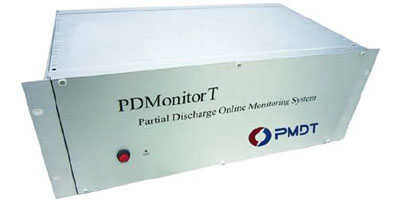

Transformer


PDMonitorT utilizes internal UHF, UHF, HFCT and AE contact sensors to detect, analyze, and diagnose the partial discharge signals from transformers. It consists of Main Units, sensors, and cables that conduct real time monitoring for the PD signals from the transformer while online. It analyzes the data, eliminates the noise and diagnoses the failure. Alarms are delivered when the signals monitored reach the conditions set forth by the user.
(View Catalogue)

GIS


PDMonitorG utilizes internal and External UHF Sensors to monitor the PD Signals emitted from GIS in real time. It consists of sensors, Monitoring Endpoint Units (MEU), a Diagnostic Server Unit (DSU) and cables. The PD signals detected from the sensors are transmitted to the MEU for processing. The processed data is transmitted to the DSU through optical fiber and is analyzed and diagnosed by the PC-based software and Intelligent Diagnostic System.
(View Catalogue)

PD Monitoring

PDMonitorU utilizes UHF, HFCT, and AE Sensors to monitor, analyze, and diagnose the PD signals emitted from multiple high voltage electrical equipment.It consists of sensors, Monitoring Endpoint Units (MEU), a Diagnostic Server Unit (DSU) and cables. The PD signals detected from the sensors are transmitted to the MEU for processing. The processed data is transmitted to the DSU through Ethernet or fiber optic cable and analyzed by the Intelligent Diagnostic System.
(View Catalogue)


Switchgear


PDMonitorS utilizes TEV, AE, Ultrasonic, External UHF, and HFCT Sensors to detect, analyze, and diagnose the partial discharge signals from switchgear. PDMonitorsS consists of sensors, Monitoring Endpoint Units (MEU), Data Concentrator Units (DCU), a Diagnostic Server Unit (DSU) (Optional), and cables. Since the MEU can operate independently, you can use a certain number of MEUs to monitor several switchgear or choose to….
 (View Catalogue)
