Rapidox 1100 Oxygen Analyser


The Rapidox 1100 oxygen gas analyser is the company’s most cost effective and versatile range of gas analysers fitted with either a zirconia or electrochemical type gas sensor.

The zirconia oxygen sensor is the most common solution providing fast and accurate gas analysis over the range 1ppm to 100% O2 and is particularly suitable for aggressive industrial applications.

• Choice of Zirconia or Electrochemical O₂sensor technology
• Fast and accurate response, enhanced by internal pressure correction
• Simple user calibration procedure (with appropriate calibration gas)
• Low maintenance and long life sensor expectancy
• Two fully programmable alarms with open or closed relay outputs
• Fully programmable digital and analogue outputs
• Software package includes full control of the analyser, live graphing and Excel compatible data-logging
• Operates on any worldwide mains voltage (90-260VAC)

(View catalogue)

Rapidox 2100 Oxygen Analyser

The Rapidox 2100 oxygen analyser was one of the first gas analysers manufactured by the company when it was established in 2000; due to its robust design some are still in service today! It is designed to provide low ppm oxygen analysis in high temperate vacuum applications.

• Digital outputs and fully programmable analogue outputs
• Operates on any worldwide mains voltage (90-260VAC)
• Various product configurations available, including OEM and bezel mounted
• Type K thermocouple input allows for independent temperature measurements
• Password protection feature
• Remote electrochemical oxygen sensor option available
• Electro beam welded sensor and manifold for vacuum applications available

 (View catalogue)

 Rapidox 3100 Multigas Analyser

The Rapidox 3100 range includes precision single, dual and triple gas analysis instruments providing powerful functionality and rich features. Designed for process, research and development applications, this gas analyser has proven very popular with universities and research institutes worldwide.

• Low maintenance and long life sensor expectancy
• Two fully programmable alarm settings: high and low, open or closed relays
• Digital outputs and fully programmable analogue outputs
• Software package includes full control of the analyser, live graphing, and Excel compatible data-logging
• Operates on any worldwide mains voltage (90-260VAC)
• Optional variable speed pump
• Type K thermocouple input allows for independent temperature measurements

 (View catalogue)

 Rapidox 5100 Portable Multigas Analyser

The Rapidox 5100 Portable Gas Analyser is a high specification instrument designed for the analysis, control and monitoring of gas in a wide range of applications including; biogas analyser, syngas, anaerobic digestion and fermentation processes.

• Modular design allows for bespoke sensor combination upon request
• Full laboratory functionality within a truly portable field instrument
• Housed within a heavy-duty IP66 case
• 7” (180mm) full-colour touch screen interface with soft menu keys
• Permanent or sampling modes available
• All data is continuously logged and Excel compatible data can be downloaded via a USB memory stick

(View catalogue)

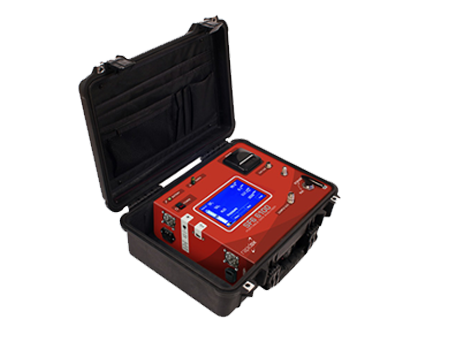

 Rapidox SF₆ 6100 Portable Gas Analyser

 The Rapidox SF₆ 6100 Portable is designed for controlling and monitoring the quality of SF₆ in MV & HV gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF₆ gas, through specially selected sensors.

Features:

• Easy to operate and configure
• Housed within a heavy duty IP66 Peli case
• Total weight of 8.5kg
• Lithium battery provides up to eight hours of operation
• Pre-programmed with all current IEC and CIGRE test configurations
• Ability to create customised tests
• Measurement data can be viewed in real time
• Data download in an MS Excel compatible format via a USB memory stick
• Features a 7” (18cm) full colour touch screen, soft menu keys and alphanumeric keypad
• Editable test locations and user names
• Integrated thermal printer provides on-site printing of test results
• Password protection feature
• Multi-language

(View catalogue)
Rapidox 7100 Multigas Analyser

The Rapidox 7100 Multigas Analyser is a high specification instrument designed for the analysis, control and monitoring of process gas in a wide range of industries. It allows the option of selecting multiple gas sensing configurations to suit the particular application. The analyser is housed within a 19″ (482mm) enclosure for convenient mounting into an industry standard test equipment rack.

 Features:

• Modular design allows for bespoke sensor combinations upon request
• Housed within a 19” (482mm) enclosure for convenient mounting into industry standard test equipment racks
• 7” (180mm) full-colour touch screen interface with soft menu keys
• Permanent or sampling modes available
• All data is continuously logged and Excel compatible data can be downloaded via a USB memory stick
• Operates on any worldwide mains voltage (90-260VAC)
• Fully programmable alarm settings
• Multi-language (Please contact for details)
• Password protection feature.

  (View catalogue)
