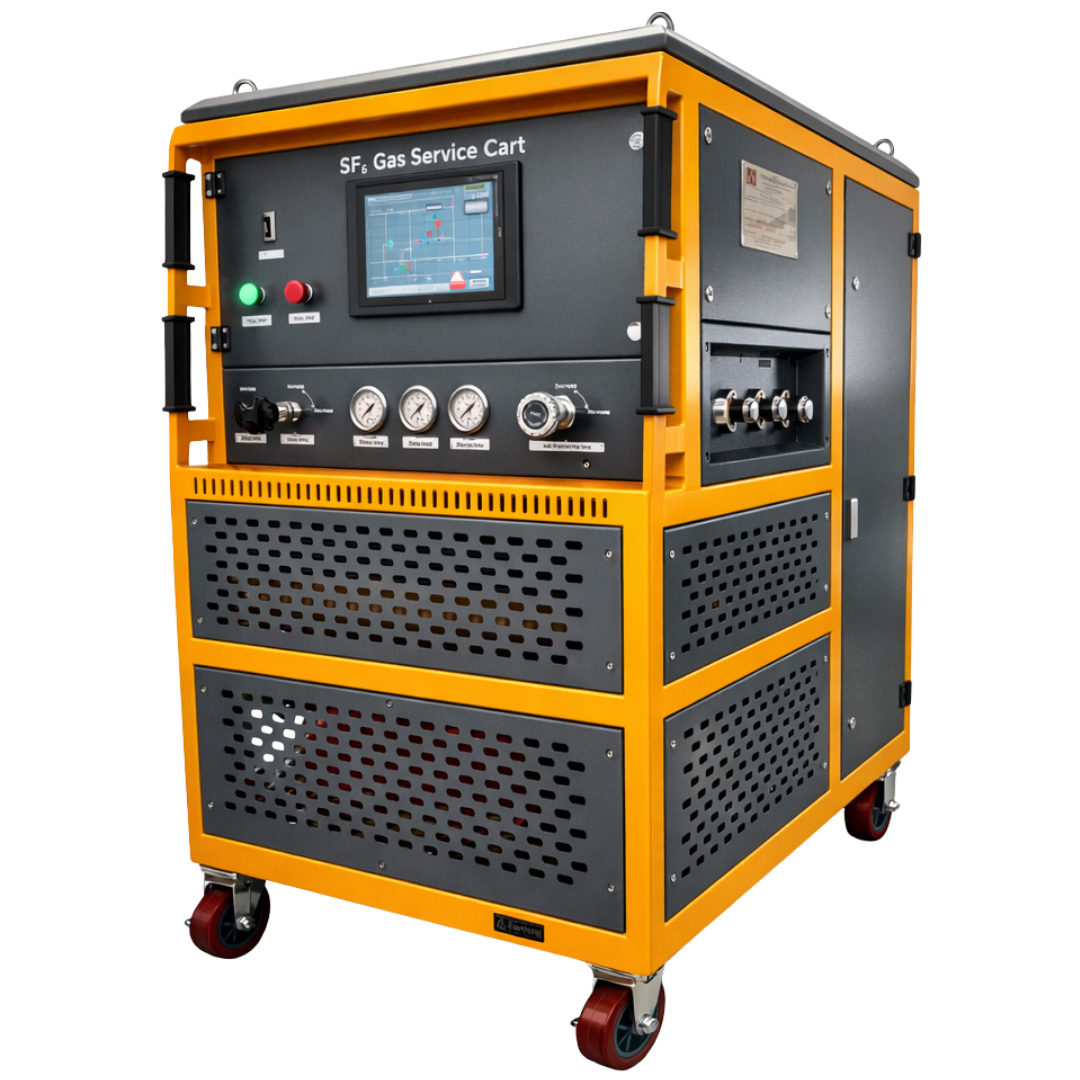

SF6 Gas Service Cart

ATPL's SF₆ Gas Service Cart (GSC) is a high-capacity gas handling system engineered for efficient recovery, evacuation, filling, and transfer of SF₆ gas in Gas Insulated Switchgear (GIS) and other high-voltage equipment. Designed for large-volume applications, the GSC delivers fast processing rates, operational safety, and dependable performance during commissioning and maintenance activities.

• Specifically optimized for SF₆ recovery and refilling operations in GIS maintenance and service environments.
• Equipped with high-capacity compressors and a robust vacuum pump system to enable complete gas evacuation, purification, and transfer.
• Suitable for large-capacity GIS installations and high-volume SF₆ gas management requirements.
• Engineered for safe, standards-compliant, and environmentally responsible SF₆ handling, minimizing gas loss, downtime, and operational costs.

Datasheet

Technical Specifications

Parameters	GSC-5 Series	GSC-15 Series
Oil Free Compressor	5 m3/h	15 m³/h
Vacuum Pump	63 m3/h, final vacuum < 1 mbar	100 m³/h
Vacuum Degree	≤10Pa	Less than 20 mbar
Annual Leakage Rate	≤1%	≤ 0.5%
Weight	1000 kg Approx.	2000 kg Approx.
Dry Filter	Dry absorption filter for moisture removal
Particle Filter	Micron filter for particle removal
Control Method	User friendly automatic operation with 12" touch screen display
Vacuum and Pressure Indication	Digital display for vacuum and pressure
Power Supply	380 - 440 V / 50 Hz, 3 Phase
